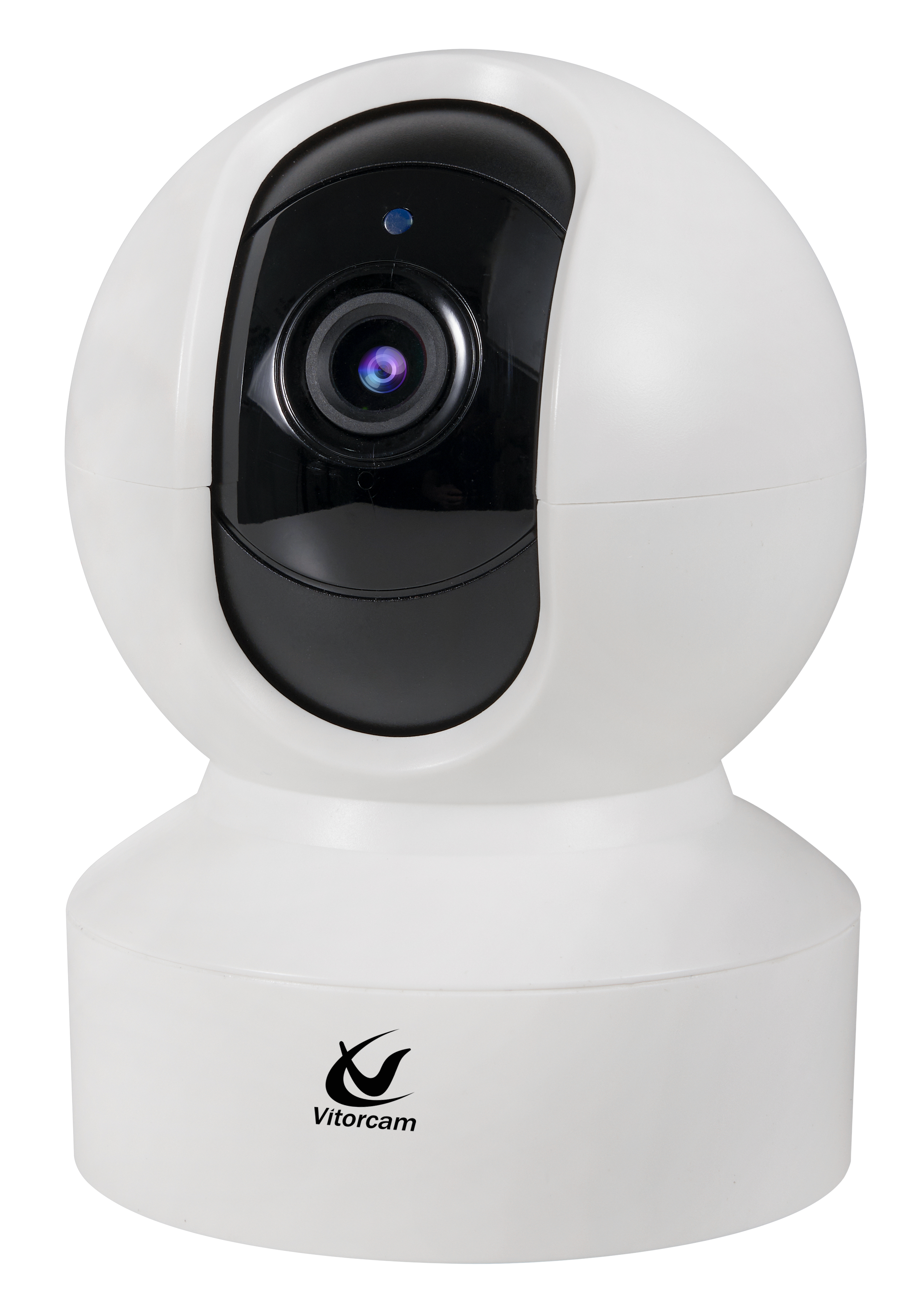

Tuya Outdoor Indoor WiFi Smart Camera T20

Amazon Alexa

Google Assistant Camera

Cloud Storage


Inquiry
Overview Video Specs FAQs

Resolution: 2560*1440;
Sensor type: 1/2.9 CMOS
IR LED: 8pcs LED, IRCUT function, HD 1080P Night Vision
Video compression: H.264
Alarm recording: Support Micro SD card, cloud storage and PC client linkage alarm recording
Wireless:IEEE 802.11 b/g/n
Protocol: HTTP,HTPPS,TCP,IPV4,IPV6,UDP,RTSP,ICMP,RTP,DHCP,ARP,DNS,QoS
Rotation angle: Horizon: 0°~355°, Vertical: 0°~90°
Power: DC5V 2A
Operating Temperature: -10°C~+50°C
Operating Humidity: 10%~ 90%, non-condensing
Audio input/output: Built-in MIC and speakers, support two way audio

Download as PDF Specifications

Specification:
- Sensor: 4.0 megapixel 1 / 2.8 "SONY335 Low Lux CMOS
- Video Resolution:
Main stream: 2560x1440@18fp;
Sub stream: Q720P(800x600、640x480)@15fps
- Video Compression: H.265 H.264
- Night Vision: 10pcs array infrared LEDS, night vision distance 10M
- Audio input/output: Built-in MIC and speakers, support 2-Way audio

Network
- Wireless: IEEE 802.11 b/g/n
- Ethernet: RJ45 Ethernet
- Onvif Protocol: Support ONVIF 2.4 (backward compatible)

PTZ
- Rotation Angle: Horizontal: 0°~ 355°, Vertical: 0°~ 120°
- Horizontal Speed: 10°~ 30°/S
- Vertical Speed: 8°~ 25°/S
- Preset: 8 preset points

General specification:
- Power: DC5V 2A
- Operating Environment: range -20℃ ~ + 60℃, Humidity 10% ~ 90%, non-condensing
- Product Weight: 0.9kg
- Reset Button: The reset button is right at the power connector (hold for 10s-15s)

Package Lists:
1 X IP Camera
1 X Bracket & Screws pack
1 X Cat5 cable
1 X Power adapter with 5ft cable
1 X User manual

Functions
  • + Where download the Product Roadmap ?
  • + Where download the search tools for Mac ?
  • + Where download the client software for Mac ?
  • + Can I find out the video on YouTube ?
  • + Can I check the Amazon reviews ?
  • + Can I buy it on Amazon ?
  • + Multipe Storage Ways ?

    No need to pay any cloud fees! Just insert a Micro SD card or connect to NVR to store continuous video, or upload alert video and snapshot to FTP server.

    Max Support 128GB SD card, (Recommend to use 64GB SD Card, SD Card is not included.

    Please use SD-micro Class-10, UHS-1, or higher high-speed memory cards

  • + Up to 8 Preset Positions ?

    This security camera supports 4 independent custom detection areas and 8 preset points.

    By customizing the detection area, you can close some areas that do not need to be detected and focus on detecting important areas such as entrances and parking spaces.

    The preset point function allows you to quickly switch to the desired monitoring image without manually rotating the lens

  • + What is 2-Way Audio ?

    This wifi PTZ camera built-in microphone and speaker, offering you with two-way audio communication that allows you to speak with (and listen to) whoever is near the camera. This comes in handy when talking with your visitor or scares away Intruders.

  • + What is IP66 Waterproof ?

    With rugged and IP66 waterproof aluminum housing, this outdoor camera can withstand rain, snow and extreme cold/hot. You can absolutely install it outside without worrying that it will be damaged by dust or rain. Of cause, it can also be installed inside to keep an eye on your kids/pets/elders/property.

  • + What is Infrared Night Visoin ?

    It's no doubt that criminals like to work at night, so clear night vision is one of the most important features of security cameras. With 36 infrared LEDs lights, this camera can provide you with up to 66ft clear night vision. Even theft and vandalism occur at dark night, it can capture clear video evidence for you.

  • + What is 5MP Super HD Video ?

    This IP camera features 2560x1920 Super HD resolution that can capture clearer images and videos than 1080P Full HD cameras. It's an ideal security camera for home, garden, backyard, garage, school, shops and businesses. You can use it as a standalone IP camera, or add it to your Onvif-compliant IP security system.

  • + How to Onvif Compatible ?

    This IP camera supports most Onvif-compliant devices and third-party software. It can work with Blue Iris, iSpy, Security Spy, Zoneminder, VLC Player, etc. You can also connect it to Onvif NVR and other Onvif-compliant IP security products.

  • + What is 5MP PTZ Camera ?

    With this PTZ security camera, you can easily monitor a large area thanks to the Pan-Tilt-Zoom feature. Remotely control the camera Pan 355° or Tilt 120° through the mobile app or PC software to monitor every corner. It features 5x optical zoom, allowing you to zoom in on the details of specific objects in the distance, such as human facial features. It also supports humanoid detection, motion detection, effectively reduce false alarms caused by animals, passing vehicles or rain. It's a great choice for home/business surveillance

  • + Can it work on Synology NAS and Blue Iris ?

    Yes, support Synology NAS and Blue Iris.

  • + WiFi connect failed, how to do ?

    If the WiFi setup is failed, please check by this.

    Please log on Internet Explore via IP Add Search Tool (the print user manual guide to download) then setup wifi.

    1. The SSID and password is correct with router ?

    2. The safe mode is the same as wifi router, WPA-PSK, WPA2-PSK or mix WPA / WPA2 - PSK ?

    3. The password is not include the special character which is not found on keyboard.

  • + What is the new mobile app ?

    Please download the new mobile app CamHipro from Google Play or App Store.

  • + How to view it on VLC or iSpy ?

    RTSP URL

    First stream: rtsp://username:password@IP:port/11

    For example: rtsp://admin:123456@192.168.1.10:554/11


    Second stream: rtsp://username:password@IP:port/12

    For example: rtsp://admin:123456@192.168.1.10:554/12

  • + Does it support pre-record before motion detect alarm ?

    Support the pre-recording in 2-3 seconds (default setup) before motion recording.

    But only when the motion detection alarm recording is setup.

    It won't be pre-recording if both of the continue 24 hours recording and motion alarm recording are setup.

Payment & Shipping
  • + When do you ship out the orders ?

    ALL the orders will be dispatched within 2 business days EXCEPT the pre-order(s).

    Please refer to the specific estimated shipping date for the pre-orders item(s).

  • + When will I get the reply after I apply to be your business partner ?

    If your submission is approved, you will get an email reply within 1-2 business day.

  • + How much is the customs duties ?

    Customs duties depend on where your items are shipped from and shipped to.

  • + What are your payment options ? And what currencies do you support ?

    You can use PayPal (available in 202 countries and 25 currencies) to purchase VitorCam security products, or use credit or debit cards (Visa, MasterCard, American Express, Discover) directly without logging into your PayPal account.
